Non Automotive

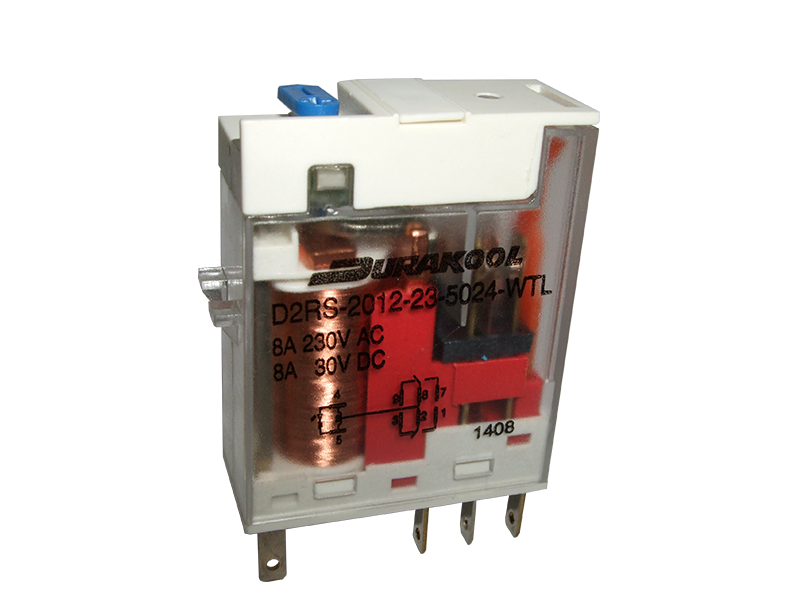

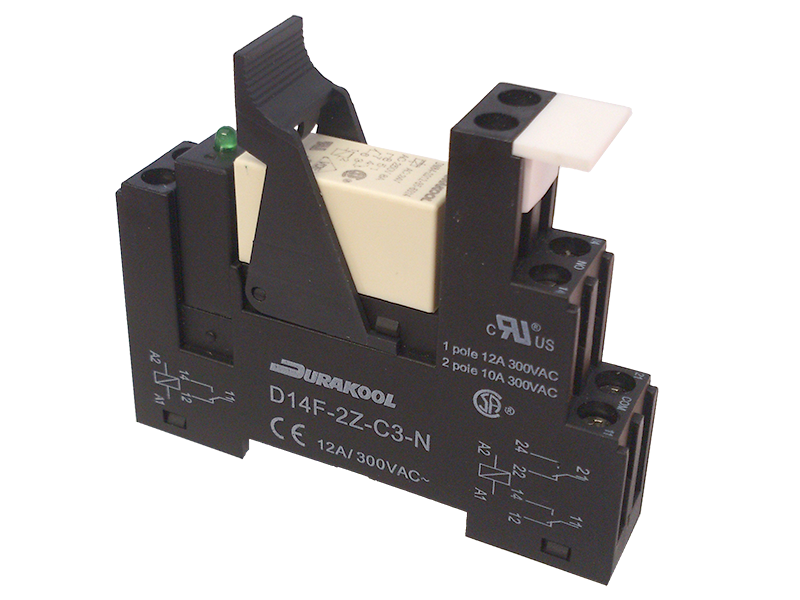

A high voltage DC switching miniature industrial relay (saving DIN rail space) with a lockable test feature (not D2RG). Other options are no test lever and/or high voltage DC switching.

NOT FOR NEW DESIGNS

A general purpose plug in relay with good inrush current resistance. Flat insert connectors - fast-on 6.35mm. NO types have >3mm contact gap. Optional DIN rail or screw mount.

NOT FOR NEW DESIGNS

An industrial relay switching currents up to 6,600VA with good inrush current resistance. Wide range AC coils. Used in heaters, HVAC and motor controls. Screw, plug in or PCB terminals. DIN rail mounting options.

An industry standard footprint industrial relay with no hole terminal blades for better mounting in sockets. Integral LED (Red AC, Green DC coils). Locking press feature test lever (Blue DC, Red AC coils). Welded coil connections (not soldered) for greater reliability.

An industry standard footprint industrial relay with no hole terminal blades for better mounting in sockets. Integral LED (Red AC, Green DC coils). Locking press feature test lever (Blue DC, Red AC coils). Welded coil connections (not soldered) for greater reliability.

An industry standard footprint industrial relay with no hole on terminal blades for better mounting in sockets. Integral LED (Red AC, Green DC coils). Locking press feature test lever (Blue DC, Red AC coils). Welded coil connections (not soldered) for greater reliability.

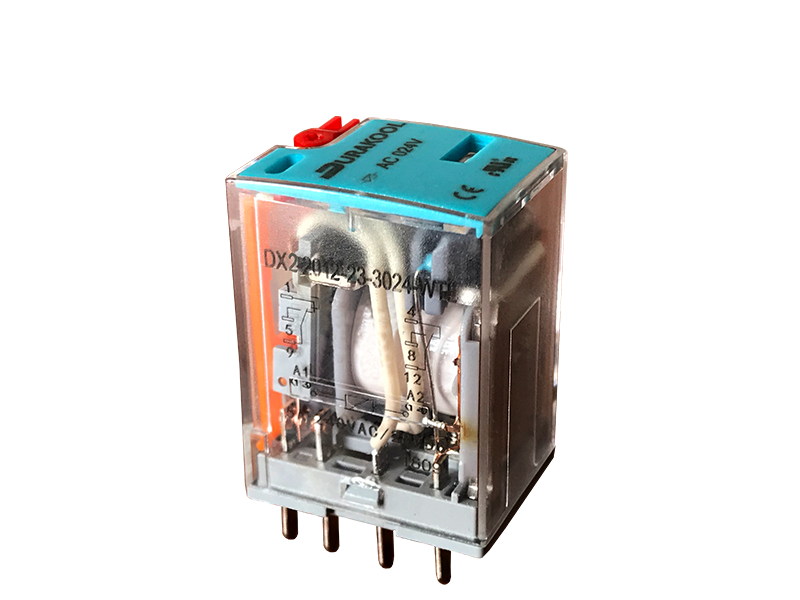

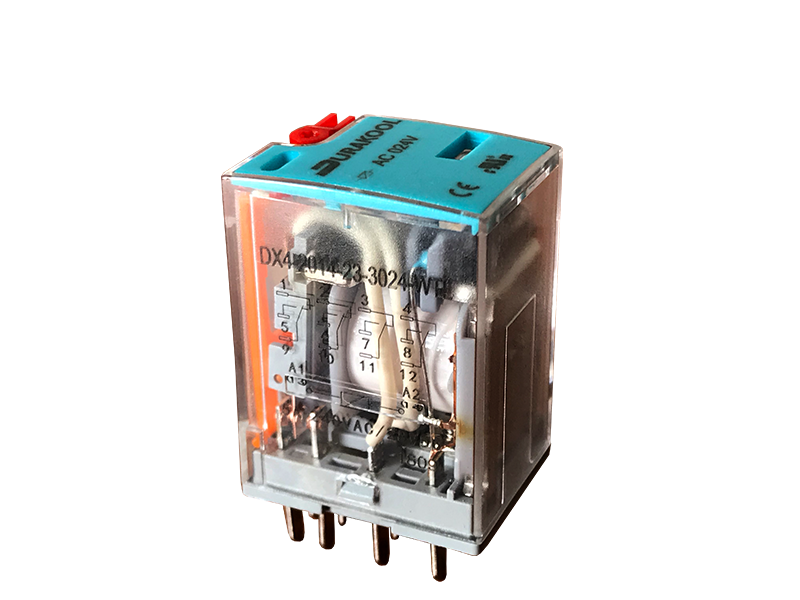

An industrial relay with no hole on terminal blades for better mounting in socket. Integral LED (Red AC, Green DC coils (A universal 24VAC coil version with yellow LED is available)). Locking test lever standard. Back EMF diode standard for DC coils. Welded coil connections.

An Industrial DPDT plug in relay with integral LED (Red AC, Green DC coils). A locking test lever is standard. The DC coil version has a yellow LED and a back EMF diode. Welded internal connections for greater reliability. PCB option.
